Satellite III Bridging

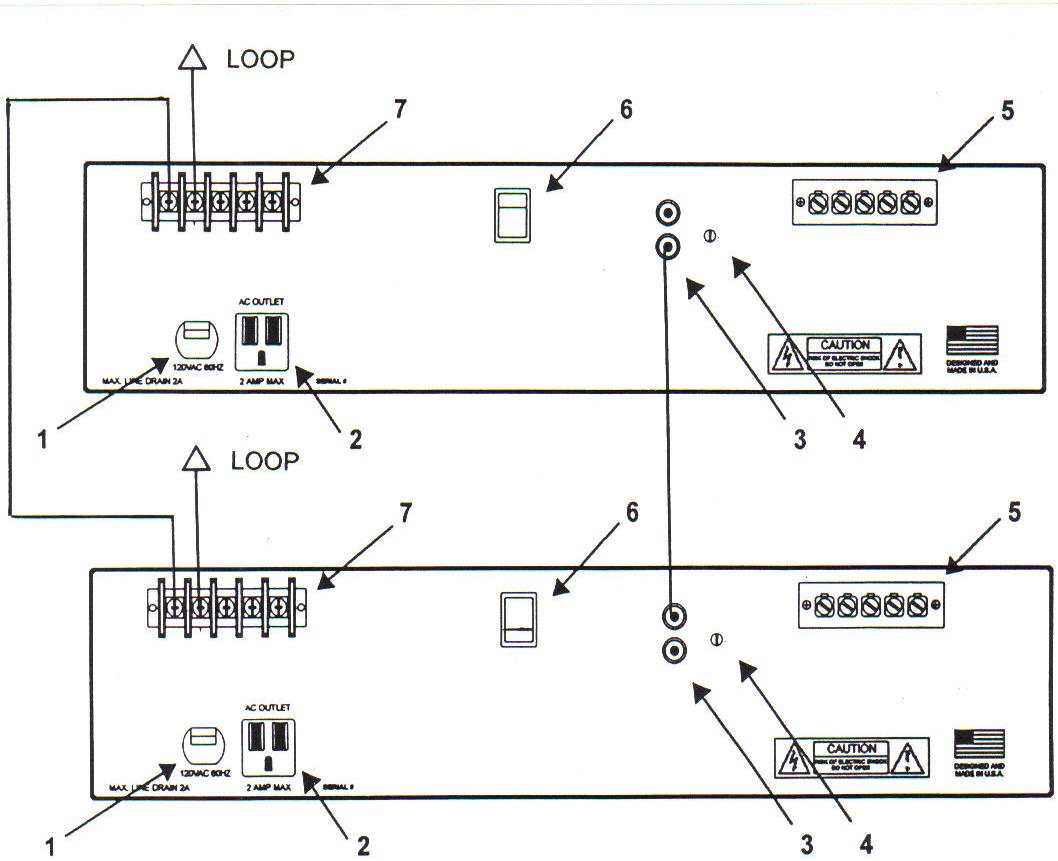

Please familiarize yourself with the Satellite III rear panel layout as shown:

  1. AC power cord
  2. Switched outlet, 2A maximum
  3. Paralleled unbalanced phono jack inputs
  4. Equalization adjustment (preset to maximum, fully counterclockwise)
  5. Balanced input terminal strip
  6. Phase invert switch for bridging two Satellite IIIs, must be switched to opposite settings (e.g. first amplifier switch pressed in on top, second amplifier switch pressed in on bottom)
  7. Loop wire connections

Bridging Satellite systems
